Description
- High-concerned chemical: None
- Use: others
- Output Power(w): 3w-5w
- Battery Capacity(mAh): 1600
- Waterproof / Water-Resistant: No
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 999
- Frequency Range: 108-136mhz,65-108mhz,400-470mhz,136 – 174 MHz
- Dimensions: 52(W)*107(H)*37(D)mm
- Model Number: 5R MINI
- Walkie Talkie Type: MINI Walkie Talkie
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China

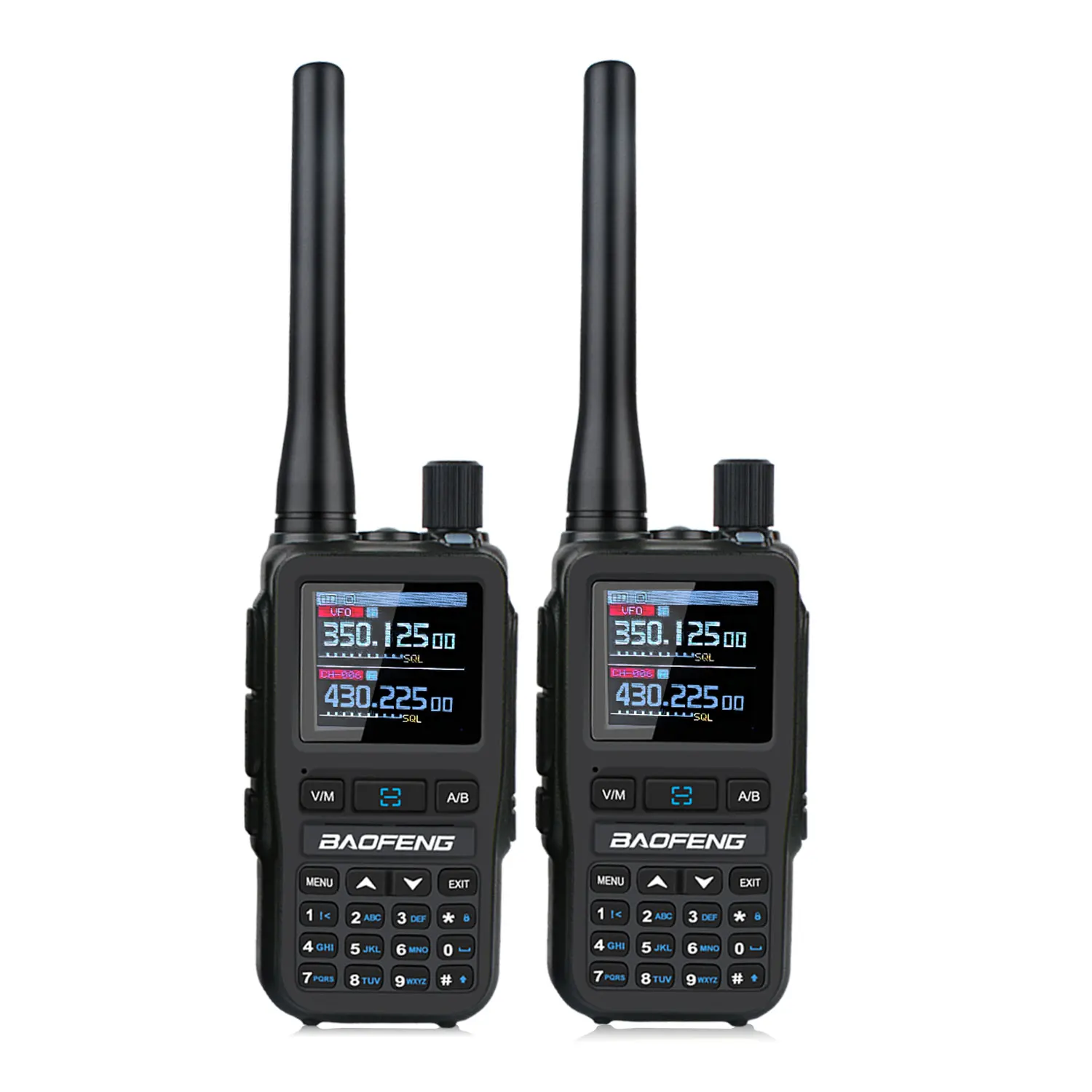

2PCS/Pack Baofeng UV-5R Mini Dual Band Dual PTT Walkie Talkie 5RMINI Air Band Rx 5W Compact VOX FM Amateur Radio Type-C Charge
Photos:
Features:
Paired Package
65-108MHz FM commercial Radio Receive only
108-135.99750MHz Aviation Band Receive only
VHF:136-174MHZ TX&RX
UHF: 400-520MHz TX&RX
High Power (5W)/Low Power (2W) Select-able 5W/2W
1.44 inch TFT Color Display Screen
one key fast Channel Copy
APP Wireless Programming
Mini Compact size

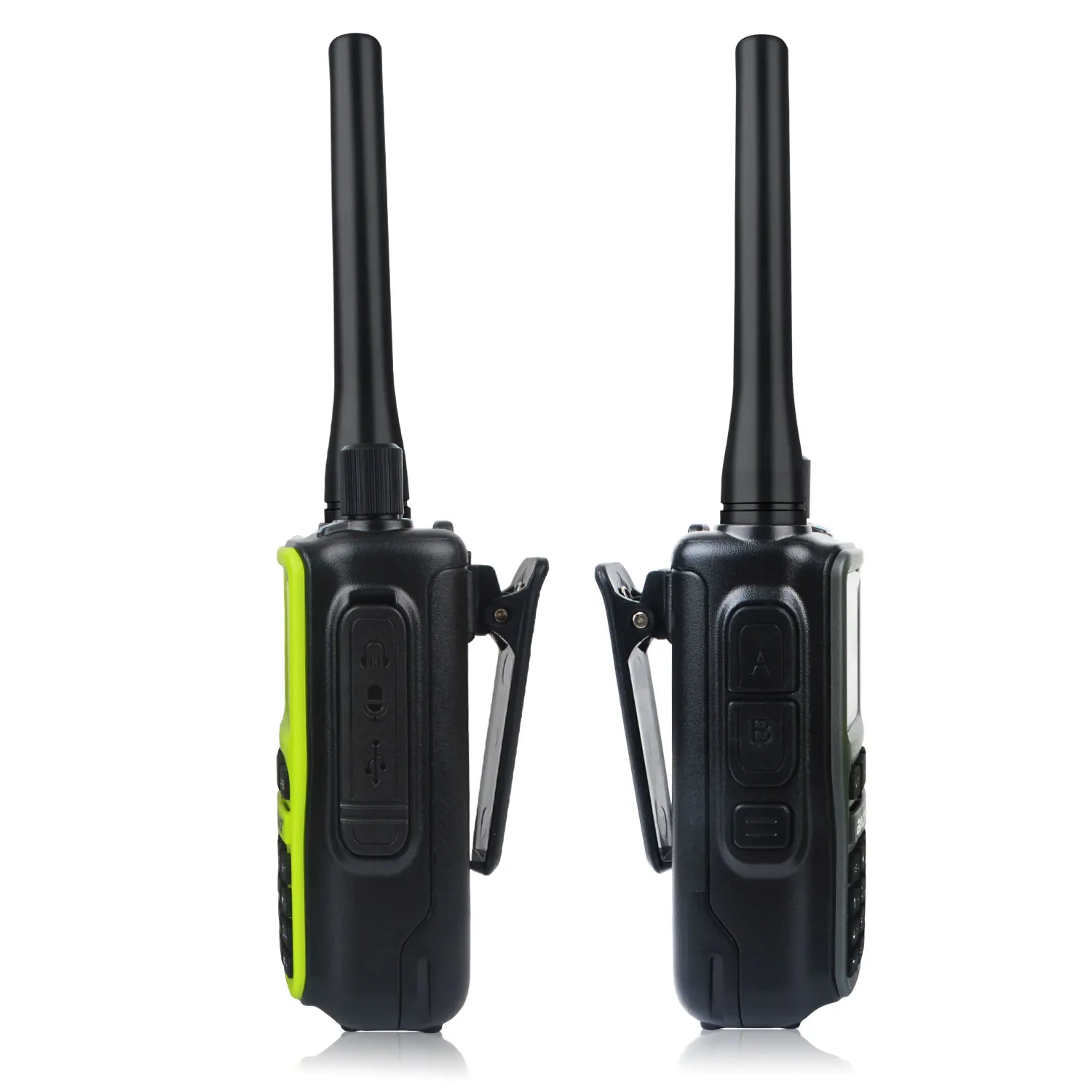

Dual-PTT Switches Design
1000Hz/1450/1750/2100Hz alert
Built-in HI-FI Speaker 16Ω 1W
10 NoAA Weather Forecast Channels

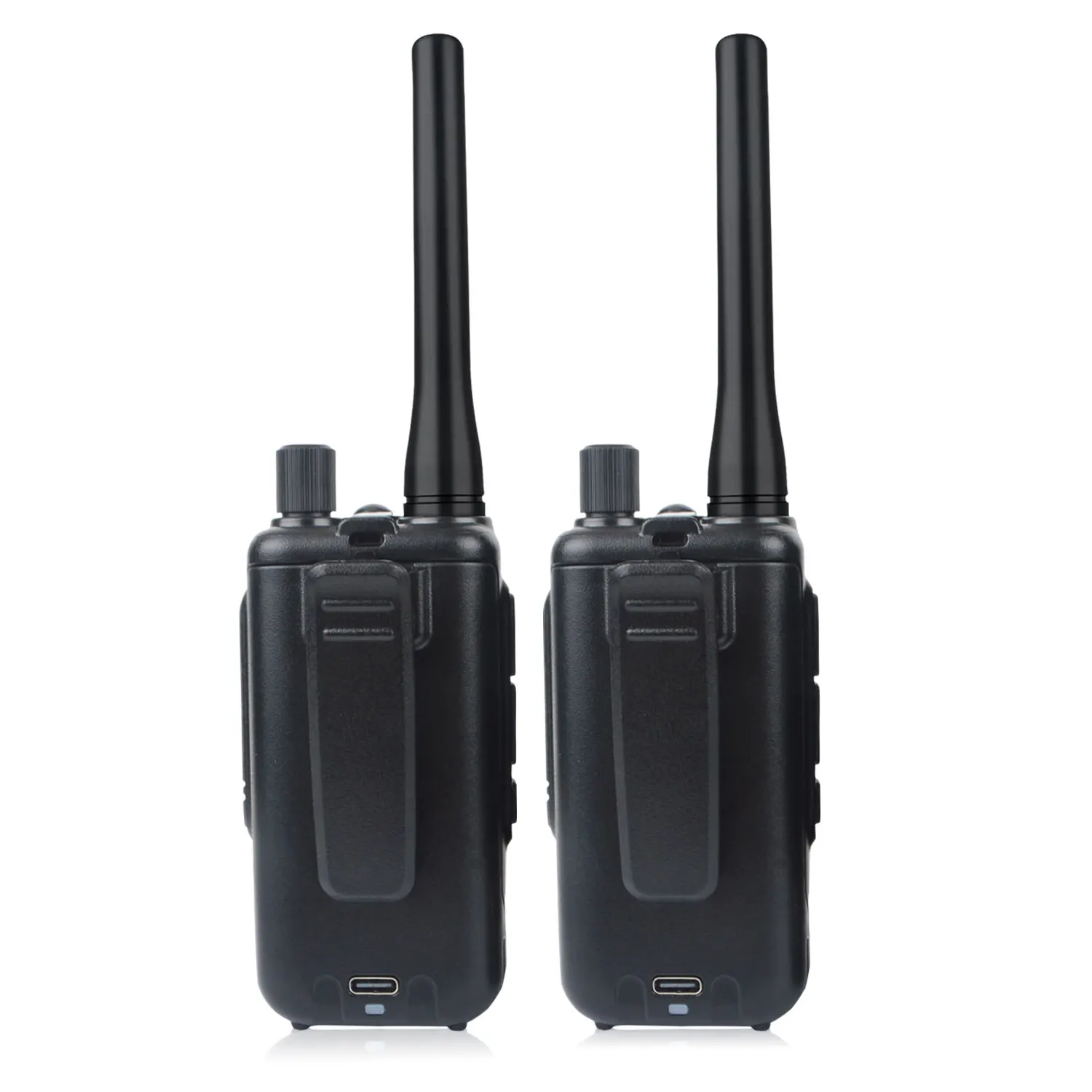

Direct Type-C cable charging port on the battery
1600mah ultra high battery power Capacity for a longer working time duration
High-illumination Flashlight
Scan
VOX
Roger Beep
Dual Watch
DTMF
PTT-ID PTT
SOS Alarm
Manual Programming
Technical Specifications:
General | |
Channel Capacity | 999 |
Channel Spacing | 25KHz (Wide Band),12.5KHz(Narrow Band) |
Input Voltage | DC7.4V(Rechargeable Lithium Battery) |
Frequency Stability | ±2.5ppm |
Antenna Impedance | 50Ω |
Radio Dimensions | 52(W)*107(H)*37(D)mm |
Radio Weight | 200g (including antenna and battery) |
Transmitter | |
Transmit Current Drain | ≤1.6A |
Modulation | 16K0 F3E/11K0 F3E |
Max Frequency Deviation | ≤5KHz/≤2.5KHz |
FM Hum & Noise | ≥-45dB/≥-40dB |
Receiver | |
Sensitivity | ≤0.25Uv (12dB SINAD) |
Rated Audio Power Output | 1W 10% |
FM Hum& Noise | ≥45dB |
Package Contentsof Each Unit:
2×UV-5R mini Radio Body

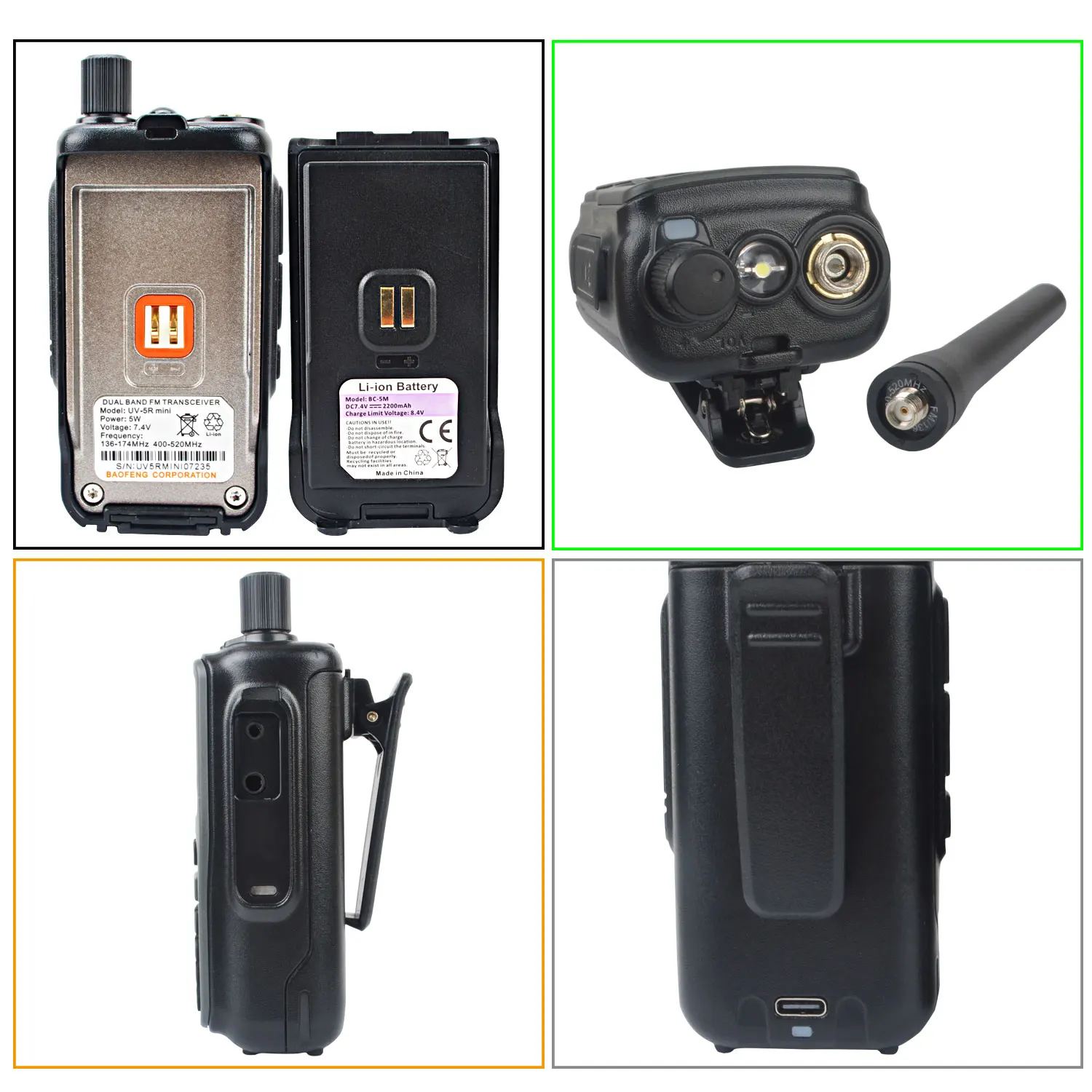

2×1600mAh Type-C Rechargeable Battery BC-5M
2×FM/136-174/400/520MHz SMA-Female Antenna
2×Belt Clip
2×USB-C Charging Cable
2×Lanyard
1×English Instruction Manual
