Description
- Battery Included: No
- High-concerned chemical: None
- Is Smart Device: No
- Operating Mode: Manual Range
- Measuring Capacitance Range: Eletrician Tool
- Operating Temperature: 0 – 40 ℃
- DIY Supplies: Electrical
- Measuring Resistance Range: 200/2000/20k/200k/2000k
- Origin: Mainland China
- Model Number: ANENG DM850 Multimetro
- Measuring Inductance Range: 45Hz~450Hz
- Brand Name: ANENG
- Dimensions: 139*74.5*33.6MM
- DC Current: 200uA/2000uA/20mA/200mA/10A
- AC Current: /
- DC Voltage: 200mV/2000mV/20V/200V/600V
- Display Type: Digital Display
- ANENG Model: DM850
- AC Voltage: 200V/600V
- Product Safety Information/Warning: Multimeter safety: avoid misuse, protect/maintain, ensure accuracy

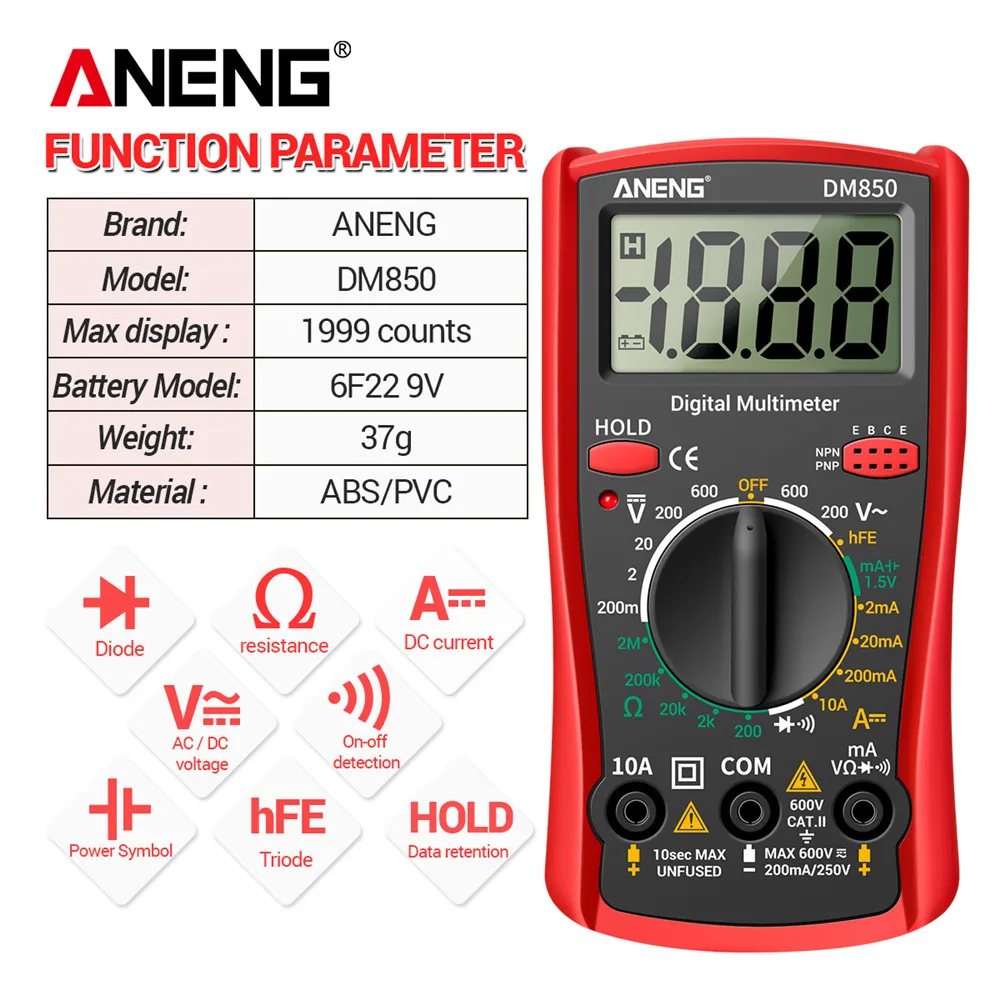

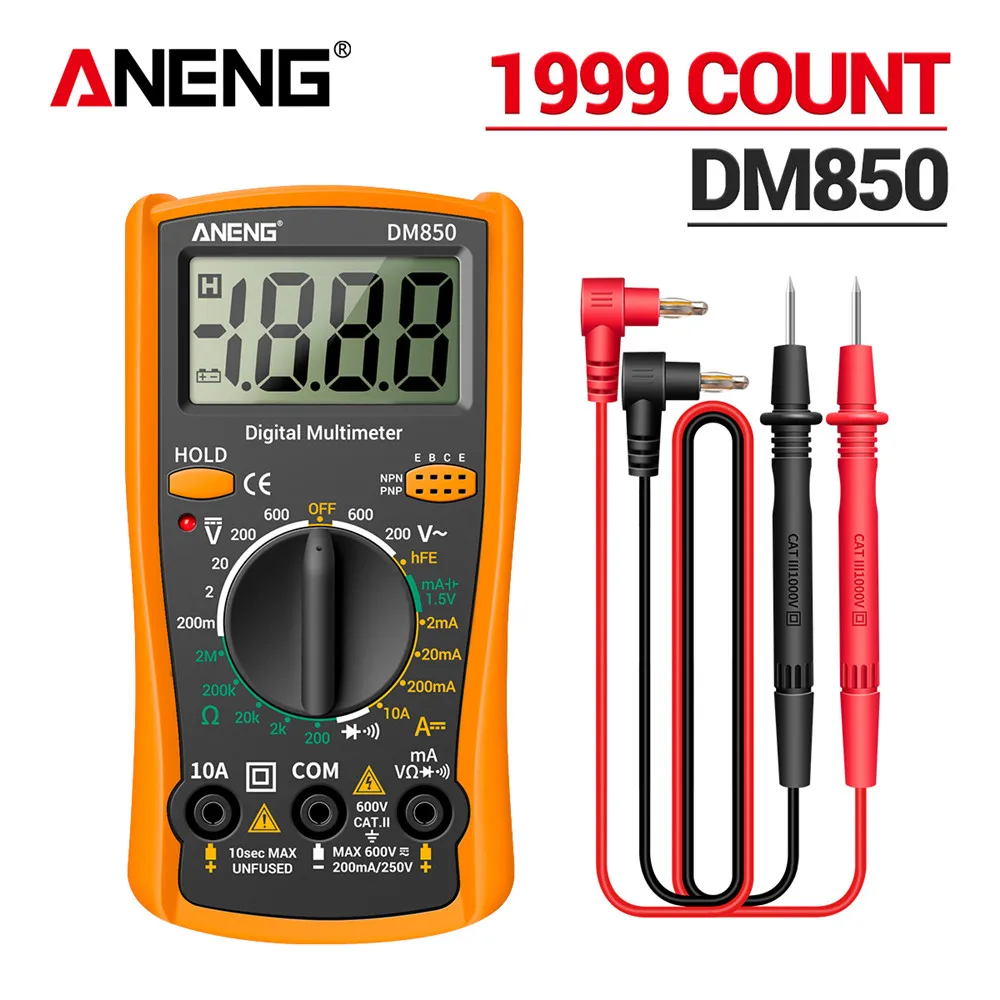

ANENG DM850
Eletric Digital Professional Multimeter
General: （Not include battery）

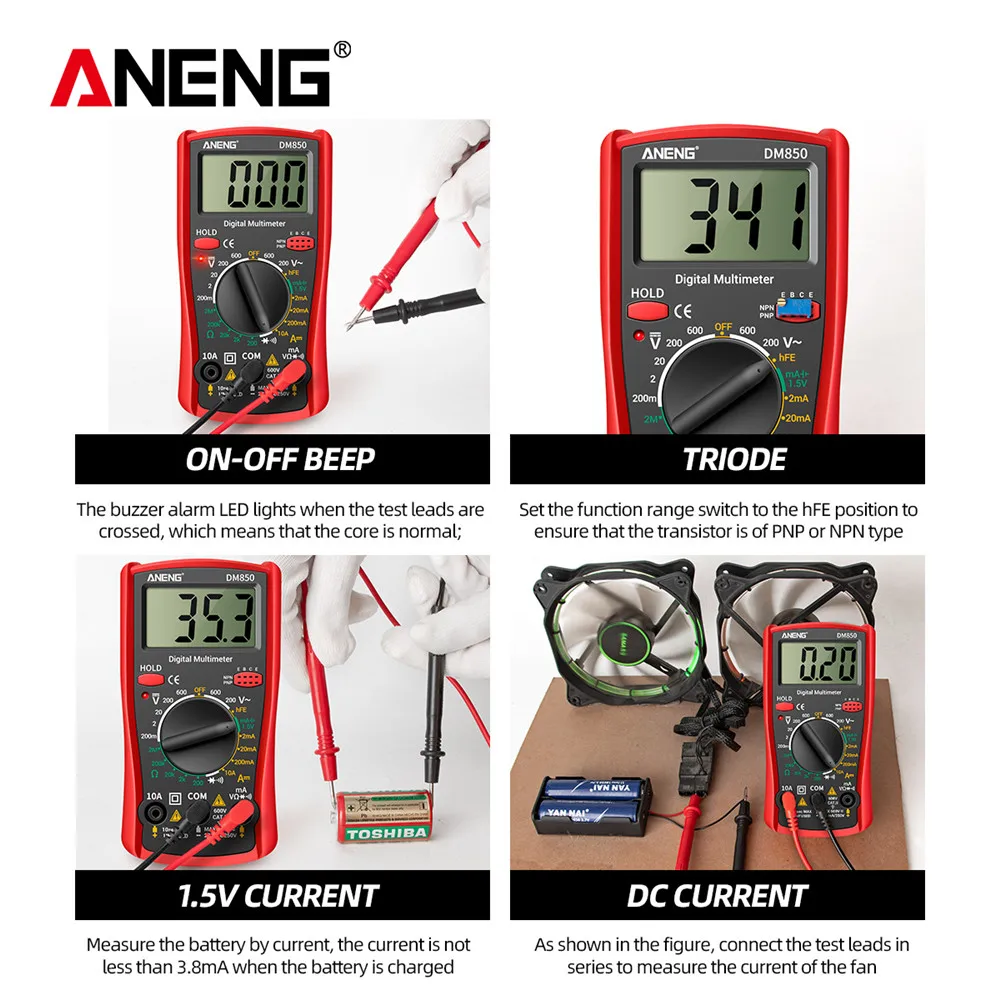

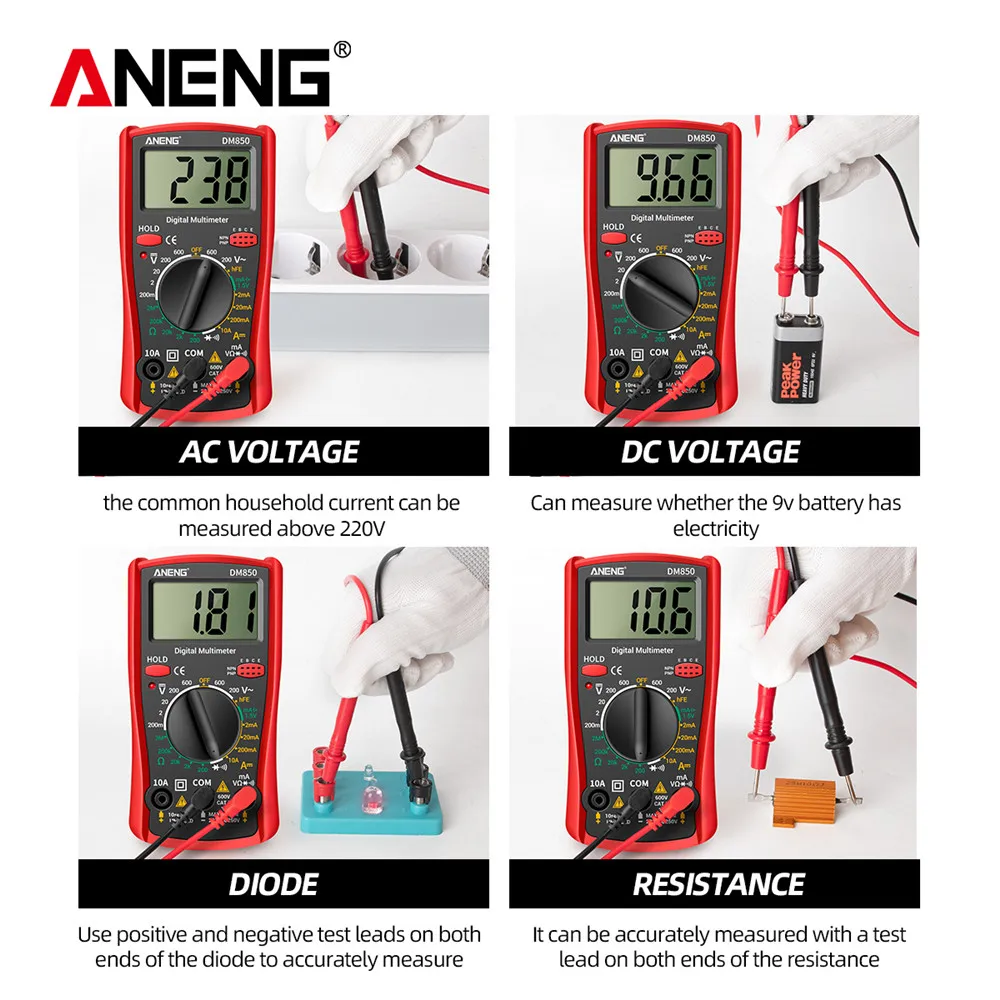

This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
Function | Range | Accuracy |
DC Voltage | 200mV | +-(2% of rdg+3D) |
2000mV/20V/200V | +-(2% of rdg+5D) | |
600V | +-(2.5% of rdg+5D) | |
AC Voltage | 200V/600V | +-(2% of rdg+10D) |
Frequency Range | 45Hz~450Hz | |
Audible Continuity Test | Yes | |
DC Current | 200uA/2000uA/20mA | +-(2% of rdg+2D) |
200mA | +-(2.5% of rdg+2D) | |
10A | +-(2.5% of rdg+10D) | |
Resistance | 200Ω | +-(2.5% of rdg+10D) |
2000Ω/20kΩ/200kΩ/2000kΩ | +-(2.5% of rdg+4D) | |
Overload Protection | 15 second |
Package:（Without Battery）
1*Multimeter
1*test leads
1*manual
1*outer packing box(by option)
J***a (verified owner) –
It fulfills all its functions well, measurements, etc. In case of continuity of the circuit, in addition to the buzz, it has a light. Very suitable for the deaf. The box is very fragile. but for the price paid it is a very good option
M***l (verified owner) –
Arrived safely and undamaged very basic meter has all the basic functions, good for using in the car. Great value
e***e (verified owner) –
It worked super well, exceeded expectations and helped me a lot. Very good, highly recommend for the price.
F***a (verified owner) –
The product is as described in the image, it’s beautiful, not compact, it’s the right size. I’ve already used it. I haven’t tested all scales, no, I haven’t tested capacitance but I’ve tested the main ones and so far, thank God, everything is fine.
A***a (verified owner) –
Very useful, it’s lightweight, it doesn’t have a display light, it does have continuity sound, you need to know how to insert the battery so that the lid doesn’t lift up. The cables are not long. The rear lever to hold the multimeter is very fragile. For the price of 4 dollars, I recommend it.
