Description
- Battery Included: No
- High-concerned chemical: None
- Operating Mode: Manual Range
- Measuring Capacitance Range: 20mF
- Operating Temperature: 0 – 40 ℃
- DIY Supplies: Electrical
- Measuring Resistance Range: 200 MOhm
- Origin: Mainland China
- Model Number: ANENG SZ305 Multimeter
- Measuring Inductance Range: ANENG Digital Multimeter
- Brand Name: ANENG
- Dimensions: 188x91x38 mm
- DC Current: 200uA-10A
- AC Current: 200uA-10A
- DC Voltage: 200mV-1000V
- Display Type: Digital Display
- ANENG Model: sz305
- AC Voltage: 200mV-750V
Describe :

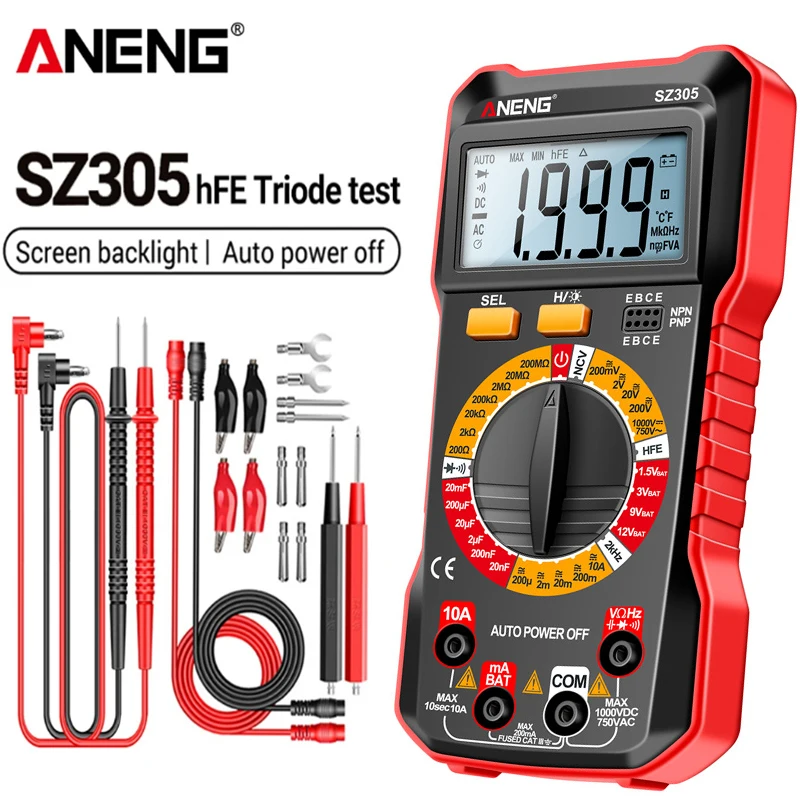

SZ305 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and other functions.
Feature:

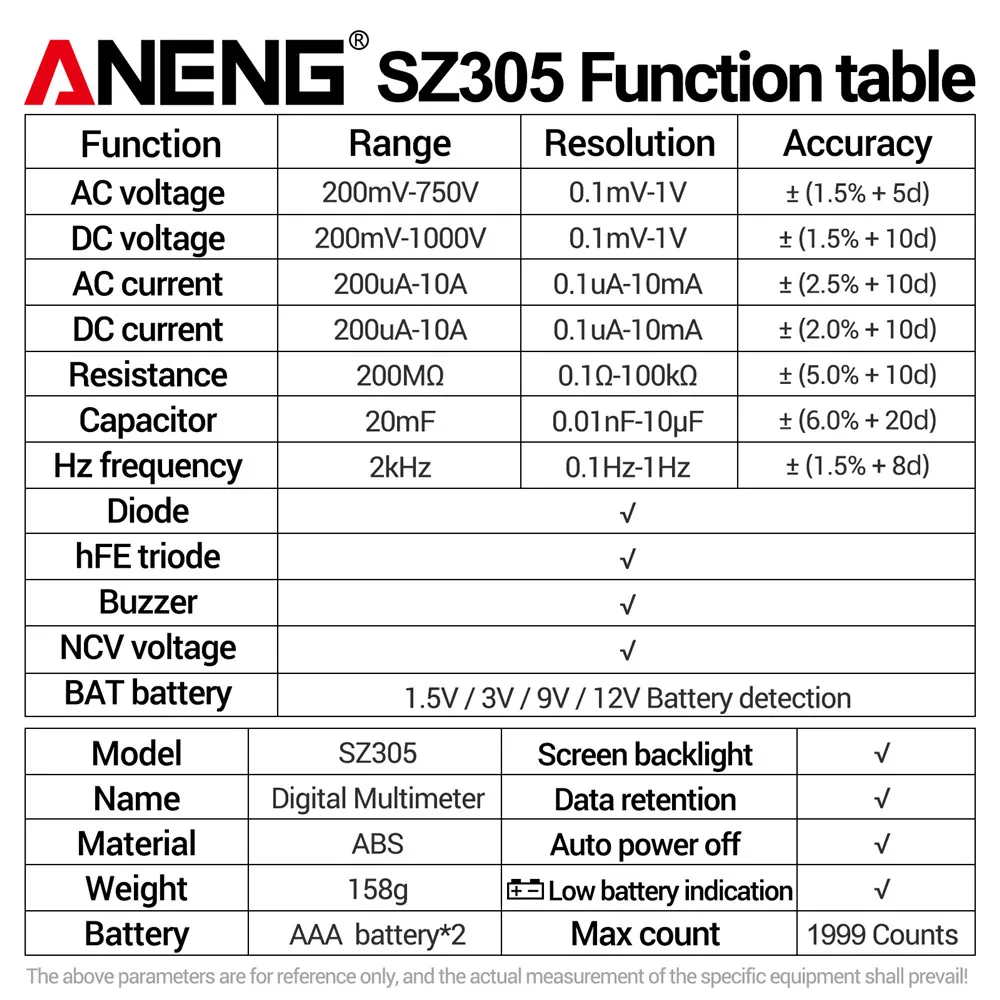

Function | Range | Resolution | Accuracy |

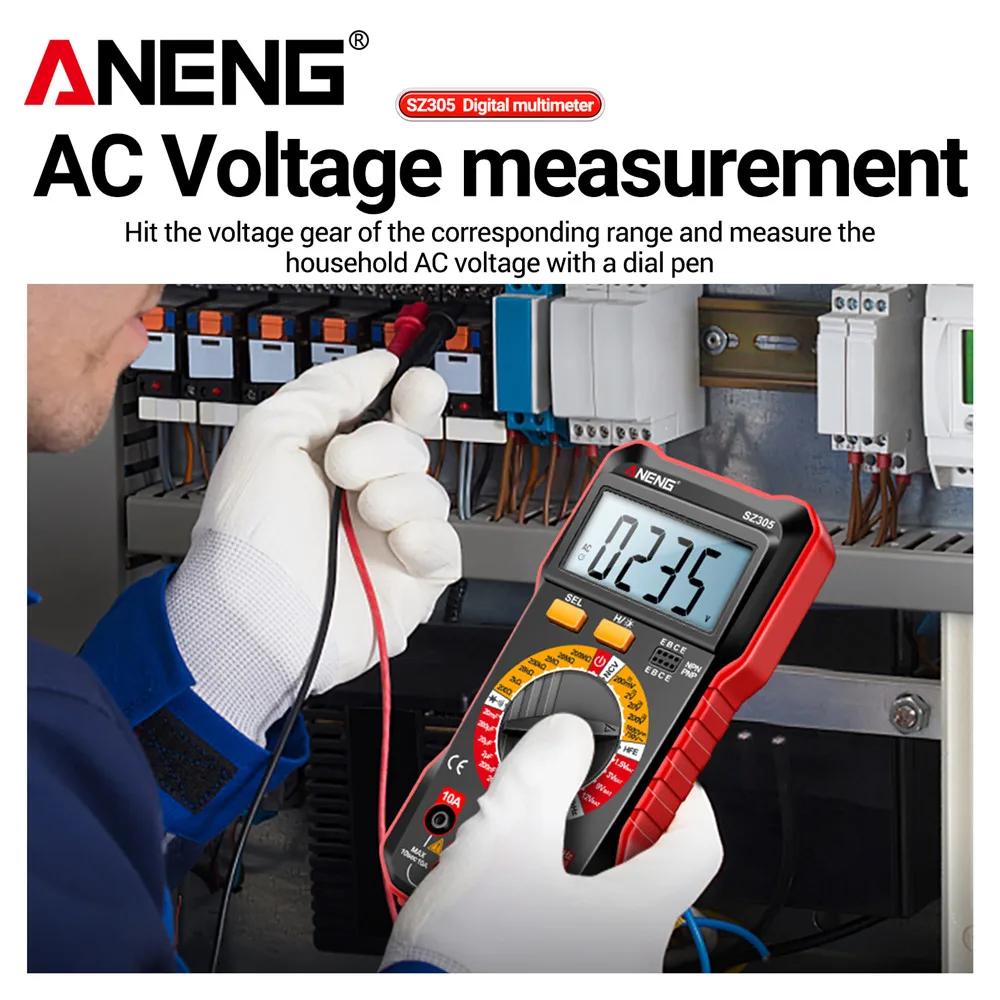

AC voltage | 200mV-750V | 0.1mV-1V | ±(1.5%+5d) |
DC voltage | 200mV-1000V | 0.1mV-1V | ±(1.5%+10d) |
AC current | 200uA-10A | 0.1uA-10mA | ±(2.5%+10d) |
DC current | 200uA-10A | 0.1uA-10mA | ±(2.0%+10d) |
Resistance | 200MΩ | 0.1Ω-100kΩ | ±(5.0%+ 10d) |
Capacitor | 20mF | 0.01nF-10uF | ±(6.0%+ 20d) |
Hz frequency | 2kHz | 0.1Hz-1Hz | ±(1.5%+8d) |
Specification | 188x91x38 mm | Screen backlight | √ |
Name | Digital Multimeter | Data retention | √ |
Material | ABS | Auto power off | √ |
Weight | 158g | Low battery indication | √ |
Battery | AAA battery*2 | Max count | 1999 Counts |
Diode | √ | ||

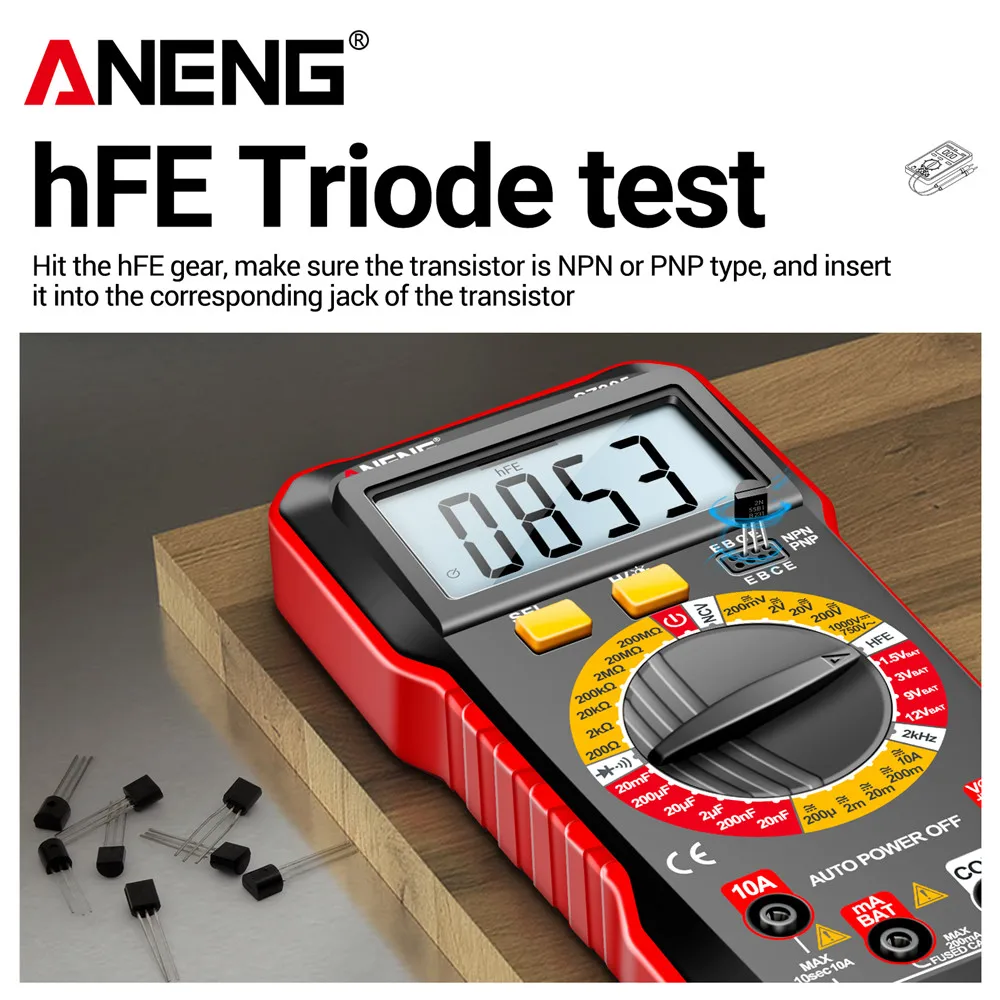

hFE triode | √ | ||
Buzzer | √ | ||

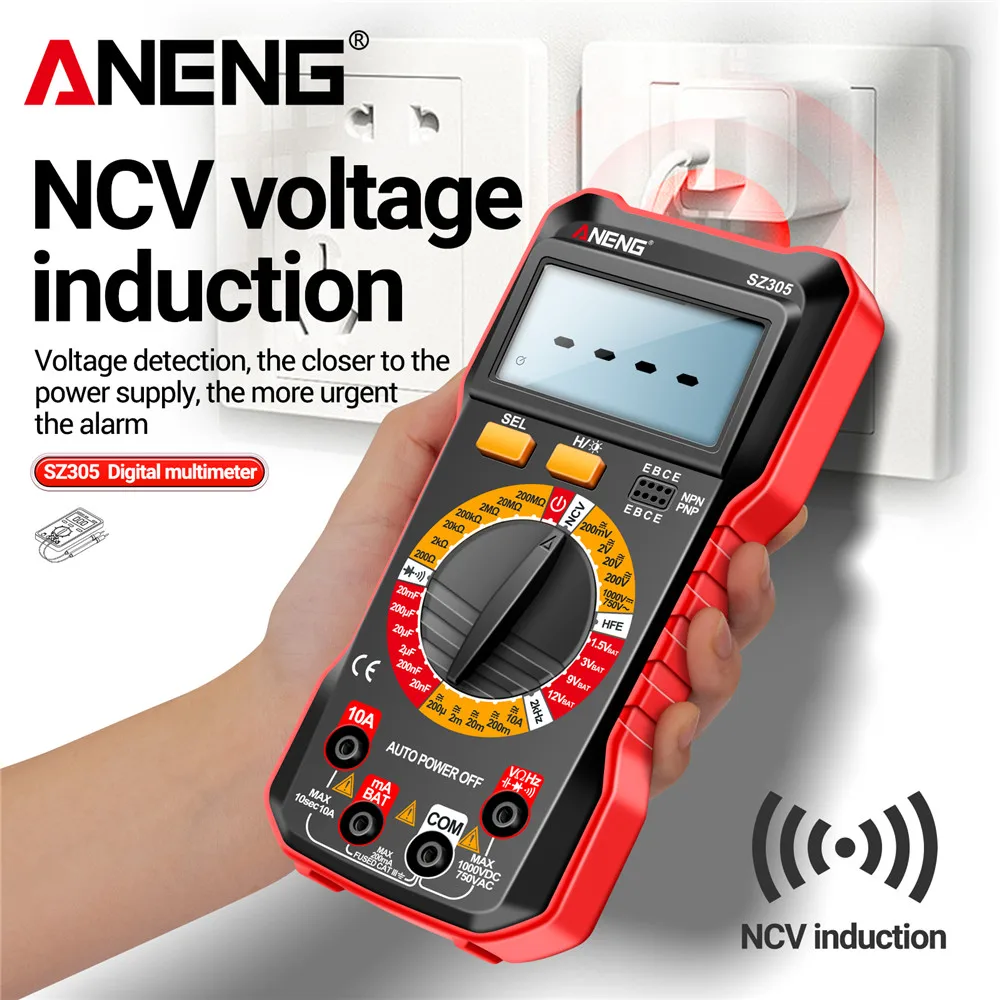

NCV voltage | √ | ||

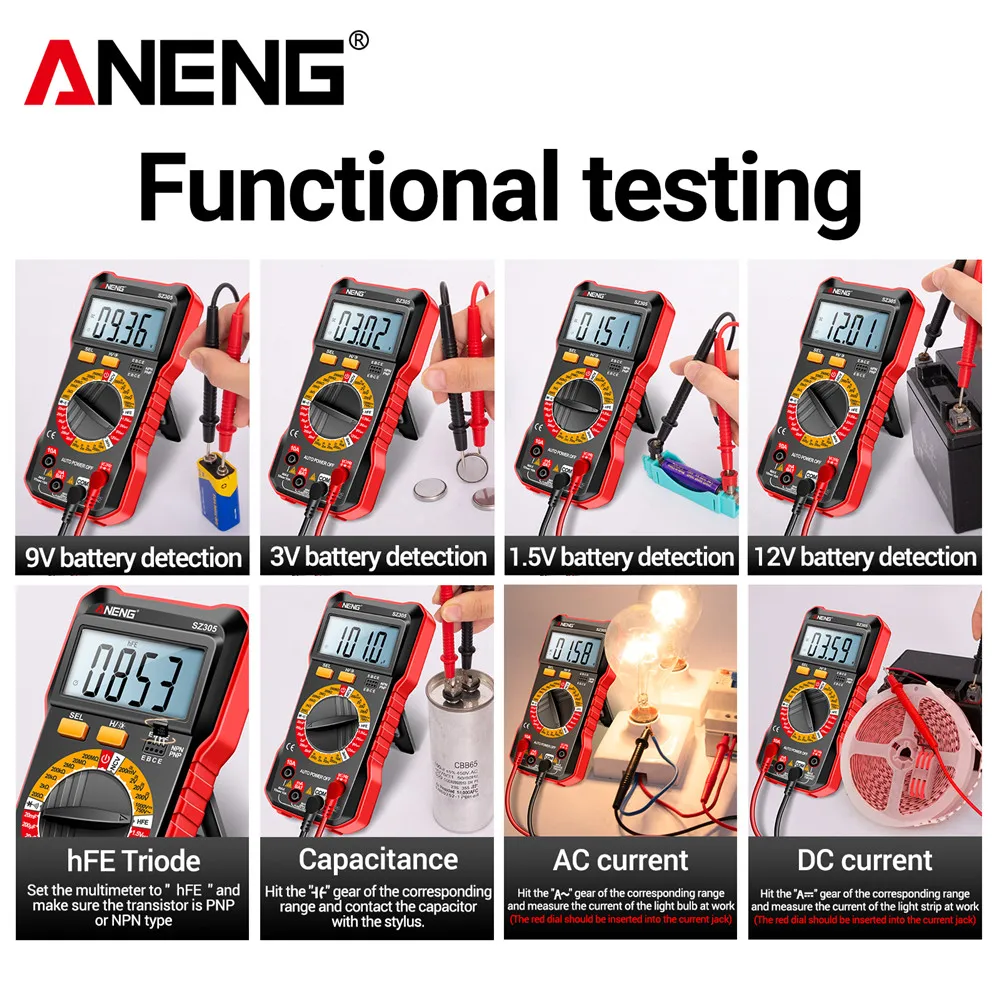

BAT battery | 1.5V / 3V / 9V /12V Battery detection | ||
Packaging content: (Without battery)
1 x Multimeter
1 x Test lead
1 x English User Manual
J***a (verified owner) –
A good toy for beginners 😉 but it measures well. A bit larger than i expected. Cover material (=case) seems to be cheap and fragile. But absolutely worth the price, i recommended.
R***y (verified owner) –
Very nicely boxed and packed. First look was pleasing. The dial and buttons are clear. It includes a manual leaflet in english, so living in the uk as i do i was pleased with that. There is not much to learn if one is experienced in electronic servicing or hobbying. The probes included are standard with no concerns. The input sockets are firm. Access to the battery bay is easy. This does need 2 aaa batteries not supplied. I like the back light feature very much and the auto shut off if left unattended. I like that the auto shut off can be over ridden with the long press of a single button. The measurements i have done were reflected accurately in the meter, and i have no complaints about it from ordering to delivery to usability. The overall look and feel of this meter is that it is full size and not miniaturized. I like a substantial meter, and do this fits the bill. For the low price i paid it has caused me to consider looking at aneng equipment more closely for future requirements.
D***z (verified owner) –
Excellent multimeter, the only thing it has is that it doesn’t measure picofarads well; this multimeter is suitable for measuring nanofarads and above.
m***r (verified owner) –
I am very satisfied with the device. Testing capacitors is now easily possible. There is also an acoustic signal for the continuity check.
S***t (verified owner) –
Fast delivery. At least as precise as my other (also low price) devices, but with lot more functions in a single multimeter. Bigger and lighter than i expected. The included cables are actually useful.
a***r (verified owner) –
Very fast delivery well packaged also item was also packaged excellent inside the box to protect it even more, item was bigger than i thought the extra items leads added extensions are great also perfect item would definitely buy again.
