Description
- High-concerned chemical: None
- is_customized: Yes
- Model Number: SM230-4
- Outdoor Activity: surfing
- Capacity (Person): 3
- Hull Material: PVC
- Length: 230cm
- Origin: Mainland China
- Inflation Pressure: 2.9 PSI (side tubes) & 5.0 PSI (floor)
- Hull Material: 0.7mm PVC (or customized)
- External Specifications: 230*128CM/7.5*4.19ft
- Internal Specifications: 160*58CM/5.2*1.9ft
- G.W/N.W: 17.6KG(39Pounds)/15.9KG (35Pounds)
- Packing Size: 78*48*28 cm/2.5*1.5*0.9 ft
- Floor Type: Air Deck Floor
- Capacity (Person): 3 Person
- Color: Grey blue,Army green(Or Customized)
- Is_customized: Yes(the logo,color,material thickness,etc)
- NO. of Air Chamber: 3
- Diameter of Chamber: 35CM
- Loading Capacity: 320Kg/705Pounds
- Suitable: Fishing,Recreation,Leisure,Work&utility,Tanning and Relaxing on the water
- Included Components: Air pump,Repair kit,Backpack,Fishing rod holder,Paddle*2,Air deck,Wooden board seat,etc
is_customized: Yes(the logo,color,material thickness,etc)
Capacity (Person): 3
Certification: ce
Hull Material: 0.7mm PVC (or customized)
Color: Blue Gray, Army Green
External specifications: 230*128CM/7.5*4.19ft
Internal specifications: 160*58CM/5.2*1.9ft
Maximum Payload: 320Kg/705Pounds
Gross weight: 17.6KG/39Pounds
Packing dimensions: 78*48*28 cm/2.5*1.5*0.9 ft
NO. of Air Chamber:3
Diameter of Chamber:35CM
Inflation Pressure:2.9 PSI (side tubes) & 5.0 PSI (floor)
Recommend Power:3.5HP(45/55LBS Electric Motor)
Feature:Resistant,Durable,Anti collision,Anti scratch
Included Components:Air pump,Repair kit,Backpack,Fishing rod holder,Paddle*2,Air deck,Wooden board seat,etc
Activity: Fishing, Diving, Surfing, Sailing, Traveling, Camping

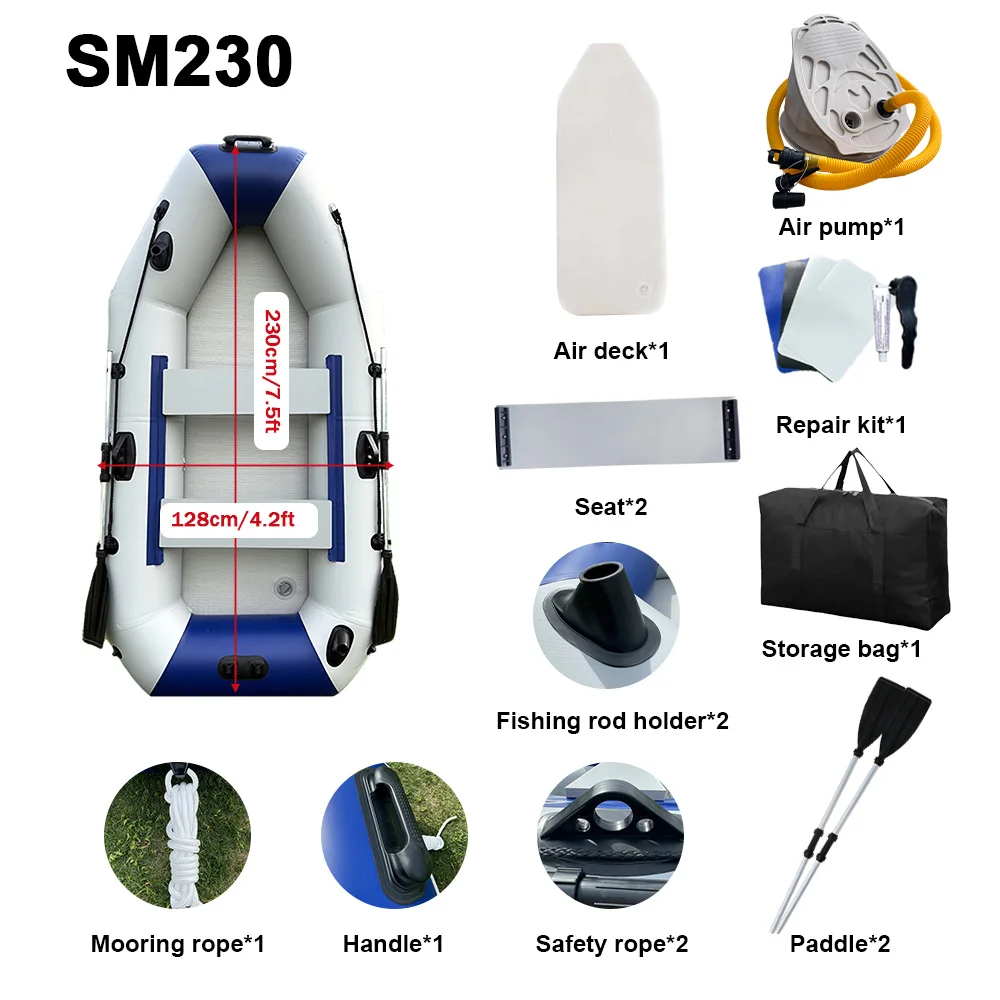

Accessories:
*1 Air pump
*2 Paddle
*1 Repair kit
*2 Fishing rod holder
*1 Carrying bag
*2 Wooden board seat
*1 Air deck
How to storage the boat?
There is very little that you have to do to keep your boat in good condition for many years. Do not store your boat inflated. If you store it in a closet, basement or garage, we suggest you pick a cool, dry place, making sure the boat is clean and dry before you store it – or mold can accumulate. Use as few cleaning agents as possible, do not discharge waste agents into water, and clean your boat preferably on land. Clean your boat after a trip to prevent damage from sand, salt water or sun exposure. Most dirt can be removed with a garden hose, a sponge and mild soap. Make sure the boat is completely dry before storing. Store the product and accessories in a dry, temperature controlled, between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius) storage location.
Motor type:Brush Motor
Shaft length: 30"/76cm
Overal length: 110cm
Volts: 12V
Rated current:46 A
Power:552 W
The fastest speed:6 km/h
Control: Telescoping handle
Speeds Forward/Reverse: 5F/2R
Propeller: 3-blade
Rated speed: 1300R/min
G.W./N.W.: 10.0/9.0kg
Packing size:107*55*18cm
Recommend Battery: 60-120AH
1. Please pay attention to cleaning your machine and drying it after each use (especially in seawater)
2. Please change gears step by step, do not change it too quickly
3. When working in a fixed gear, please do not exceed 8 minutes continuously
4. The gear switch and propeller blade of the machine are vulnerable parts. If they are damaged, please contact us for purchase.
Model:2 stroke 3.5HP
Overall L*W*H:365*220*920mm
Displacement:49cc
Gear ratio:2.08(27:13)
Cylinder:2
Max. output:2.5kw
Max. speed:4000-5000r/min
Gear positions:Clutch control
Packing size:95.5*42*31cm
N.W/G.W.:9.56/12.18kg
Ignition system:CDI
Cooling system:Water-cooling
Control system:Tiller control
Starting system:Manual start
Standard fuel tank capacity:within 1.3L
1. Please note that this product must be started in water, and it is not allowed to start the engine on shore.
2. Please note that the two-stroke outboard engine must use a mixture of gasoline and two-stroke engine oil. In addition, gasoline and oil must be stirred evenly.
3. Please note that the running-in period is about 10 hours. During the running-in period, do not drive with a high throttle.
4. The ratio of gasoline to oil during the running-in period of the new engine is 25:1. After the running-in period, the volume ratio is 50:1.
5. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about 6 months.
6. When the outboard motor is started, loosen the exhaust screw on the fuel tank cover counterclockwise. The emergency flameout rope shall be inserted, and the other end shall be placed on the wrist or belt.
7. When there is no water outlet from the engine, please stop using it immediately, then check the water pump impeller or outlet for blockage.
8. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors.
